WA1507R-1 POWER DIVIDERS & SPLITTER

Back to Resistive Power Splitters.

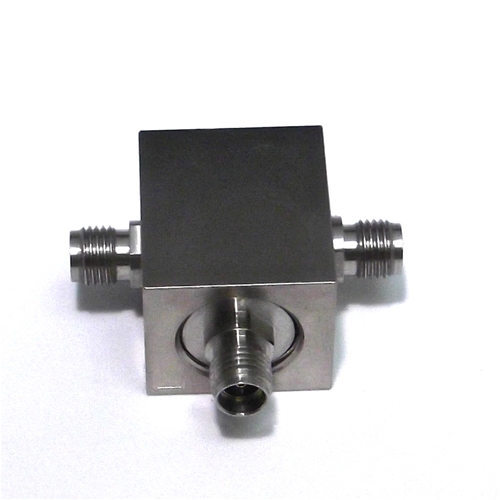

Power Splitter, 1.0W, 4.0 GHz, SMA Female Connectors.
WA1507R-1
  • WA1507R-1

click on thumbnail to zoom

Request a Quote

Connector 1: *
Connector 2: *
Requests


Datasheet

Lightweight miniature package.  These resistive power splitter are intended for RF and wireless applications in which one of the outputs is included in a leveling loop or used as a reference in a radio system.



Dimensions & Weight: 0.05 kg; Length: 34.54 mm; Width: 17.27 mm; Height: 30.48 mm
Connection & Mounting: SMA Female Input/Female output connectors per MIL-STD-348 interface dimension mate non-destructively with MIL-PRF-39012 connectors.
Construction: Nickel plated brass body; stainless steel connectors; gold plated beryllium copper contacts. RoHs Compliant
Average Power Description: Maximum rated average power to 25°C ambient temperature, de-rated linearly to 0.1 W at 125°C.
Average Power: 1
Peak Power: 1 kW peak (5 μsec pulse width, 0.05% duty cycle)
Power Coefficient: <0.005 dB/dB/W
Directionality: Unidirectional
Frequency Range: dc to 4.0
Nominal Impedance: 50
Temperature Range: -55°C to +125°C
Temperature Coefficient: <0.0004 dB/dB/°C
VSWR:
Frequency Range (GHz)dc to 4.0
Output VSWR (max)1.15
Input VSWR (max)1.20
Phase Tracking: <4°
Amplitude Tracking: <0.15 dB
Insertion Loss: 6 dB nominal, 6.5 dB maximum (between input and either output)
