WA18 FIXED ATTENUATOR

Back to Low Power (up to 10 Watts).

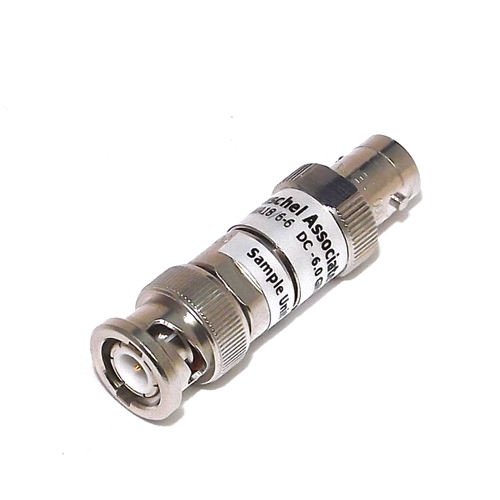

Fixed Attenuator, 2.0 W, 6.0 GHz, BNC Connectors
WA18

Request a Quote

Attenuation: * dB
Connector 1: *
Connector 2: *
Requests

Datasheet


2W Bidirectional Fixed Attenuator with 6 GHz frequency response (useable to 12 GHz) and BNC connectors. Designed to meet the environmental requirements of MIL-DTL-3933. Optimized for wireless.


Dimensions & Weight: 0.05 kg; Length: 42.00 mm
Connection & Mounting: BNC connectors mate non-destructively with MIL-PRF-39012 connectors.
Construction: Passivated stainless steel body with Nickel Plated brass connectors. Gold Plated beryllium copper contacts. RoHs Compliant
Calibration: Insertion Loss and VSWR performed across frequency range.
Average Power Description: Maximum rated average power to 25°C ambient temperature, de-rated linearly to 0 W at 125°C.
Average Power: 2
Peak Power: 1 kW peak (5 μsec pulse width, 0.1% duty cycle)
Power Coefficient: <0.005 dB/dB/W
Directionality: Bidirectional
Frequency Range: dc to 6.0
Attenuation Range: 1 to 30
Attenuation Accuracy:
Attenuation (dB)1 to 67-30
Accuracy (+/ dB)0.40.9
Nominal Impedance: 50
Temperature Range: -55°C to +125°C
Temperature Coefficient: <0.0004 dB/dB/C
VSWR:
Frequency Range (GHz)dc to 4.04.0 to 6.0
VSWR1.251.30
