WA67 FIXED ATTENUATOR

Back to High Power (150 - 2000 Watts).

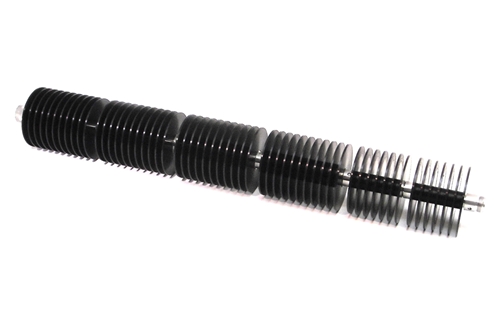

Fixed Attenuator, 350.0W, 12GHz, Type N
WA67

Request a Quote

Attenuation: * dB
Connector 1: *
Connector 2: *
Requests


Datasheet

High power combined with high frequency response. Designed to meet with MIL-DTL-3933 environmental specifications.

Dimensions & Weight: Weight: 1.3 kg; Length: 483 mm; Body Diameter: 63.5 mm
Connection & Mounting: RoHs Compliant
Construction: Black anodized body with stainless steel connectors
Calibration: Insertion loss and VSWR measured across the frequency band. Test data available at additional cost.
Average Power Description: Maximum rated average power to +25 C ambient temperature, de-rated linearly to 10 W at +100 C. (Case temperature must be held to 100 C maximum)
Average Power: 350
Peak Power: 5 kW (5 microsecond PW, 3.5% Duty Cycle)
Power Sensitivity: <0.0001 dB/dB/W
Directionality: Unidirectional
Frequency Range: DC to 12 GHz
Attenuation Range: 10 to 40 dB
Attenuation Accuracy:
Attenuation10 dB20, 30 dB40 dB
Accuracy (+/- dB), DC to 8 GHz2.02.52.5
Accuracy (+/- dB), 8 to 12 GHz+6.0/-0.0+5.0/-0.0+6.0/-0.0
Nominal Impedance: 50
Temperature Range: -55 to +100 C
Temperature Coefficient: < 0.0004 dB/dB/C
VSWR:
Frequency Range (GHz)dc to 8.08.0 to 12.0
VSWR (max)1.301.60
