WA1471 TERMINATION

Back to Medium Power (20 - 100 Watts).

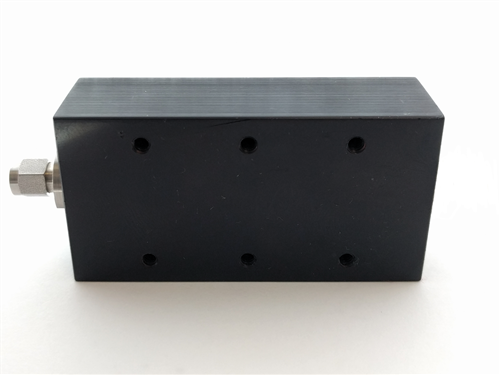

Termination, 50.0W, 4.0 GHz, Type N or SMA, low profile.

click on thumbnail to zoom

Request a Quote

Connector: *	*
Available Options:	*
Requests	Please describe any special requests

Model Features & Specs
More Details
Related Products

Datasheet

Low Profile Housing

Conductive Cooling

Designed to comply with MIL-DTL-39030

Dimensions & Weight:	0.14 kg; Length: 84.00 mm; Width: 38.10 mm; Height: 23.00 mm
Connection & Mounting:	Type N or SMA, stainless steel M/F connecters per MIL-STD-348A, interface dimensions mate non-destructively with MIL-PRF-39012.
Construction:	Black aluminum alloy body with passivated stainless steel connectors. Gold plated beryllium copper female contact, stainless steel male contact. RoHs Compliant
Calibration:	VSWR performed across frequency range. Calibration test data available at additional cost.
Options:	Low Intermodulation
Average Power Description:	Maximum rated average power with case temperature held to 100oC using conductive heat sink.
Average Power:	50
Peak Power:	5 kW peak (5 μsec pulse width, 0.5% duty cycle)
Frequency Range:	dc to 4.0
Nominal Impedance:	50
Temperature Range:	-55°C to +125°C
VSWR:	1.20
