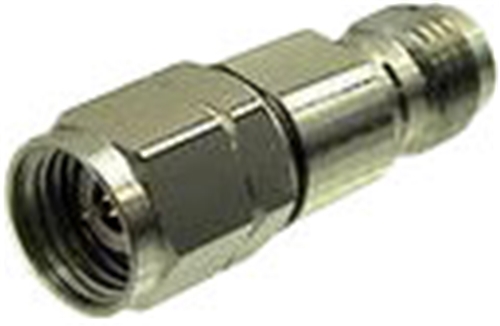

Fixed Attenuator, 1 W, 50.0 GHz, 2.4mm
Request a Quote
Attenuation:
*
dB
Connector 1:
*
2.4mm (f)
Other
Connector 2:
*
2.4mm (m)
Other
Requests
Please describe any special requests
Model Features & Specs
More Details
Related Products
Datasheet
Designed to meet MIL-DTL-3933 environmental specifications.
Dimensions & Weight:
Diameter: 8 mm; Length: 23 mm, nominal
Connection & Mounting:
2.4mm stainless steel M/F connectors per MIL-STD-348A, interface dimensions mate non-destructively with MIL-PRF-39012 connectors.
Construction:
Passivated stainless steel body and connectors. Gold plated beryllium copper contacts. RoHs Compliant.
Calibration:
Insertion Loss and VSWR performed across frequency range. Calibration test data available at additional cost.
Average Power Description:
Maximum rated average power to +25 C ambient temperature, derated linearly to 0.1 W at +125 C
Average Power:
1
Directionality:
Bidirectional
Frequency Range:
DC to 50 GHz
Attenuation Range:
0 to 30
Attenuation Accuracy:
Attenuation Range
Attenuation Accuracy (+/- dB, DC to 26.5 GHz)
Attenuation Accuracy (+/- dB, 26.5 to 40.0 GHz)
Attenuation Accuracy (+/- dB, 40.0 to 50.0 GHz)
3, 6, 10 dB
0.50
1.00
1.50
20 dB
0.80
1.25
2.00
30 dB
1.00
1.50
2.00
Nominal Impedance:
50
Temperature Range:
-55°C to +125°C
Temperature Coefficient:
<0.0006 dB/dB/°C
VSWR:
Frequency Range (GHz)
dc to 26.5
26.5 to 40.0
40.0 to 50.0
VSWR (max)
1.35
1.60
1.75
CAD Drawing
